Focal

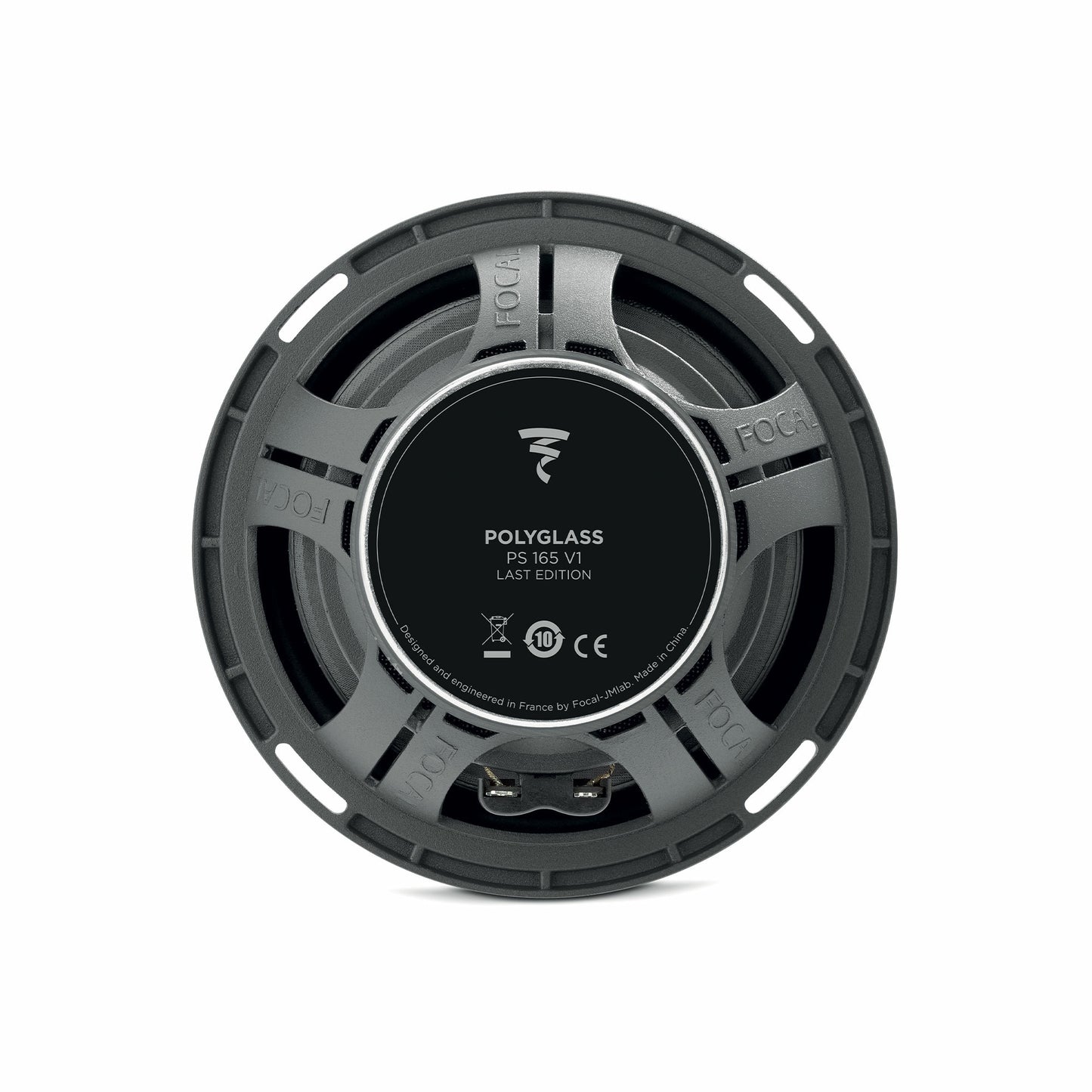

PS 165 V1 LAST EDITION

PS 165 V1 LAST EDITION

2 separate way kit 16.5 cm

RM1,438.00
RM1,438.00
Sale Sold out
Shipping calculated at checkout.

The filter integrated into the speaker makes installation easier. Connect your kit with ease and enjoy the extreme listening sensations of Performance speakers. Simply create your sound.

PERFECT SOUNDSTAGE

Thanks to their bell mouth, adjustable level (3 positions) and various mounting options, the tweeters create an ideally spatialized soundstage in the passenger compartment.


HIGH STRENGTH

With their aluminum frame and butyl surround suspension linked to Focal's Polyglass membrane, the woofers are robust and resistant, for perfect reliability over time. Their central ogives also contribute to optimal sound dispersion.

EASY INSTALLATION

This 2-way component kit makes it easy to set up a high-quality audio installation. Its crossover can be split into two elements, one for the woofer, the other for the tweeter, making set-up easy.


SPECIFICATIONS

Sound - Acoustics

  • Product type : 2 -way separate kit
  • Membrane : Polyglass
  • Tweeter : 165 мм
  • Filter : Separable
  • Frequency response (+/- 3dB) : 60Hz - 20kHz
  • Maximum power : 160 watts
  • Motor : Ferrite
  • Nominal Impedance : 4 Ω
  • Nominal power : 80 W RMS
  • Sensivity : 92.5 dB
  • Suspension material : Butyl



Sound - Electronics

  • RMS power : 80 W RMS



Design

  • Depth behind surface (Mounting depth) : 65.5 mm / 2.55 in
  • Cut-Out diameter : 165 mm / 6.5 in
  • Weight : 1000 g / 2.2 livre



Specification sheet

Technical sheet

User manual



TECHNOLOGIES

POLYGLASS MEMBRANE

Well-defined mids

The diaphragm, the key component of a loudspeaker, is at the heart of our acoustic engineers' research. Polyglass technology, exclusive to Focal, consists of applying fine glass microbeads to a cellulose pulp cone. This process reconciles the excellent damping of paper with the rigidity of glass. The stiffness index is almost 10 times that of polypropylene. Adjusting the mass-rigidity-damping ratio results in a remarkably linear frequency response curve, right from the membrane design stage. This innovation also significantly increases definition in the midrange register.

Read More



TNP TWEETER

Aluminium inverted dome tweeter

Featuring a 20 mm coil on a Kapton® mounting and a neodymium motor, the TNP inverted dome tweeter is a high-performance piece of equipment for on-board listening. Its aluminum design increases dome rigidity and greatly reduces distortion, guaranteeing a smooth, balanced soundstage. Its three installation options (flush-mount, inclined-mount, surface-mount) make it highly modular.
