Audison

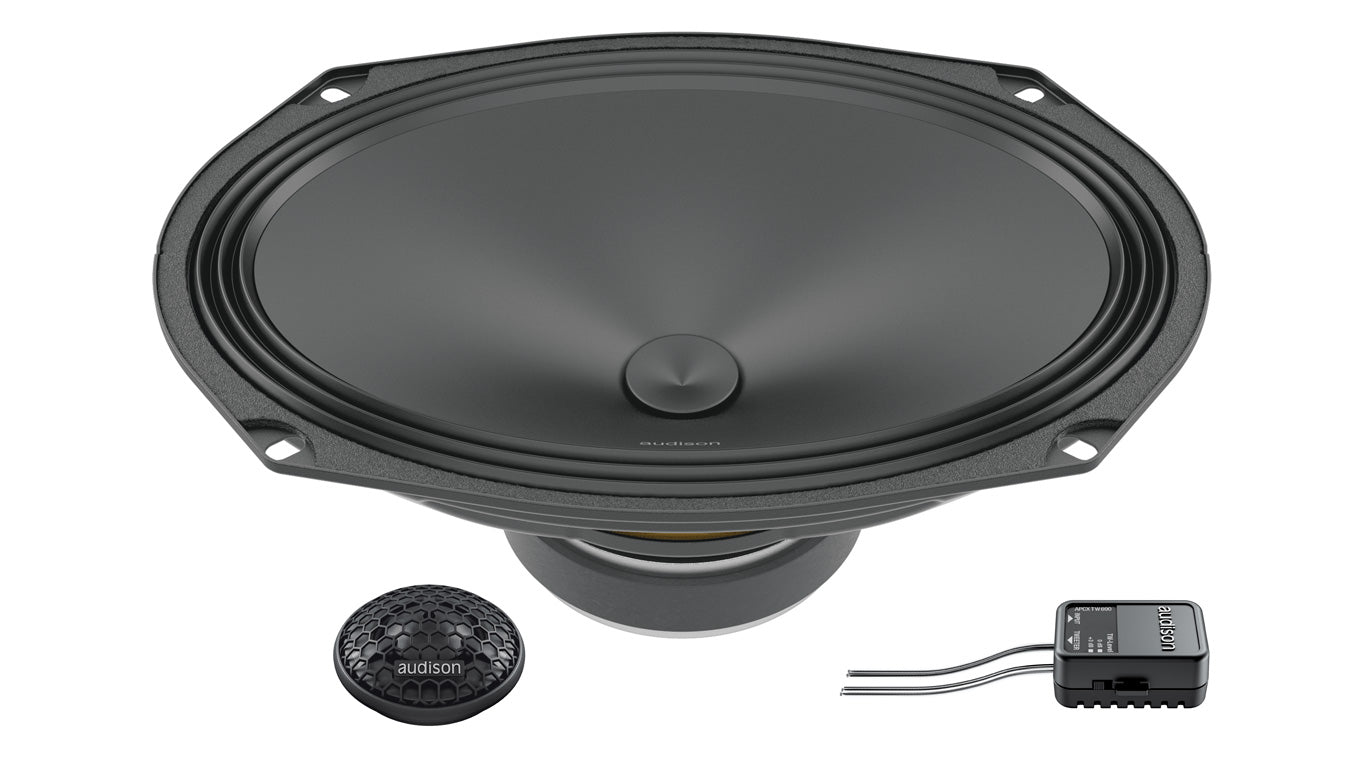

APK 690

APK 690

Kit | 300 W Peak Power | Kit 2 way 4 ohm | AP 1 + AP 690 + Crossover

Harga biasa RM1,338.00
Harga biasa Harga jualan RM1,338.00
Jualan Habis dijual
Penghantaran dikira semasa pembayaran.

APK 690 systems are ideal for car models with doors equipped to house elliptical speakers, featuring 6x9 in. woofers and AP 1 tweeter with dedicated crossovers APCX TW 690. The crossovers are ultra-compact to facilitate their installation, and include an attenuation of the tweeter output level for outstanding fine-tuning.The R & amp;D team optimized the electro-acoustic parameters of the new woofers for installation in the car door, respecting all the characteristics of the Prima speakers, such as the compact size of the basket to facilitate installation. The mechanical cut-off of the woofer cone-dust cap system ensures they can be used without a filter, maximizing efficiency to be easily driven by any type of amplifier. The large voice coil ensures high power handling and impeccable control even in the most aggressive dynamic transients. The double Faston connectors with direct link to the tweeter speed up the speakers connection, always ensuring a perfect contact.

AP 1 Tweeter

  1. 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
  2. Acoustic lens designed to compensate for the in-car frequency response in the 10kHz 13kHz bandwidth caused by critical OEM placements.


AP 690 Woofer

  1. 25 mm pure copper voice coil, for high power handling and outstanding low frequency control.
  2. Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
  3. Reduced mounting depth, providing ease of installation in OEM placements.
  4. “Triple wave” surround profile for maximum linearity of excursion.
  5. Compact basket, protected by abrasion-resistant and scratchproof coating, the motor affixed with damping epoxy adhesive.
  6. High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection.


APCX TW 690 Crossover

  1. Optimized for OEM Integration featuring an attenuation switch(0 dB, +3dB) to tune the in-car response according to different installation conditions.
  2. Supplied with fast-on connectors that eliminate any possible connection errors.



Technical Datasheet



TECHNICAL SPECS

Woofer Size 690 mm
Tweeter Size 26 mm
Woofer Voice Coil Diameter 25 mm
Tweeter Voice Coil Diameter 20 mm
Crossover Type HP 6 dB Oct - 3,3 kHz
Magnet Size Woofer 90 x 32 x 15
Power Handling - Peak 300 W
Power Handling - Continuous 100 W
Impedance 4 Ohm
Frequency Response 40 - 20 k
Woofer Cone Diameter 171 mm
Xmax Woofer 4 mm



ELECTRIC-ACOUSTIC SPECS

Re Woofer 3.1 Ohm
Fs Woofer 55 Hz
Le Woofer mH @ 1 kHz 0.2
Vas Woofer 37.1 l
Mms Woofer 17 g
Cms Woofer 0.5
Bxl Woofer 5.3
Qts Woofer 0.6
Qms Woofer 7
Qes Tweeter 2,78
Spl Woofer 95 dB



GENERAL

Weight Woofer 1.17 kg
Weight Tweeter 0.04 kg
